View Surface Condition Trends

Create Trend Chart Filter

Select Pavement Management from the toolbar.

Select Surface Condition Trend… The Surface Condition Trend Filter window will appear.

Filters used in creating surface condition trends can be the same as any other saved network or filter. Filters and networks you have previously created and saved can be opened and used to generate Surface Condition Trend charts using the Open button.

Select a field, operator, value, and group, then select Add Criteria.

To save your filter options for later use, select the Save button, enter a name for your filter, then select OK.

Once you have the criteria you want to use for your filter, enter a Year From and Year To.

Select Run to generate the charts.

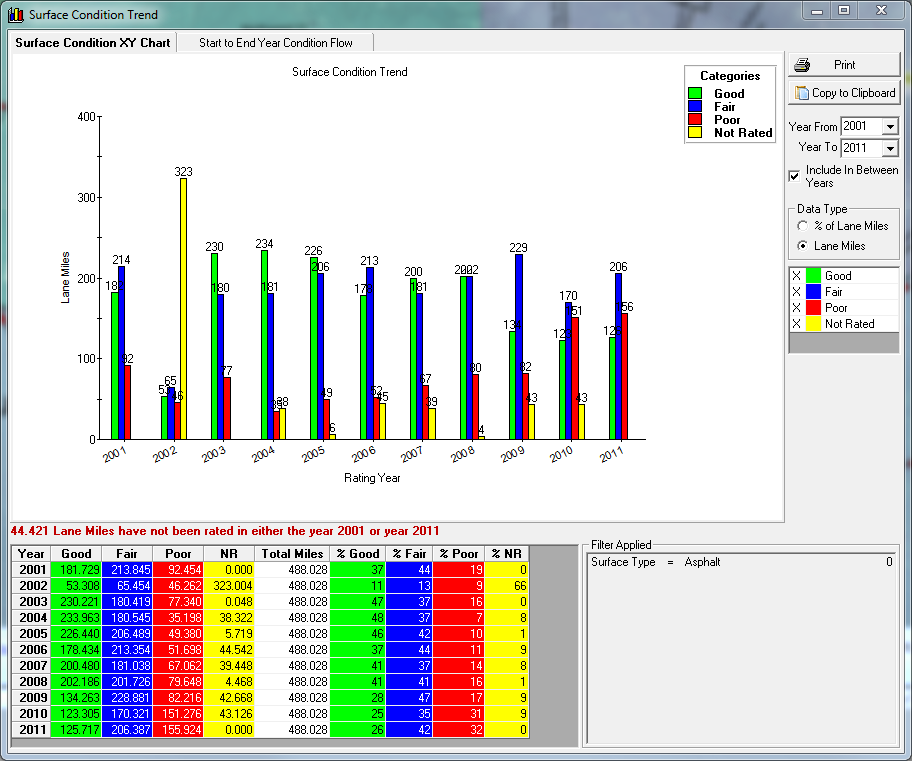

View Surface Condition XY Chart

The Surface Condition XY Chart tab will be automatically selected when you select to run a surface condition trend analysis.

$P:\RoadSoft\Documentation\Word Documents\SCXYTab.png$

View Start-to-End Condition Flow

Select the Start to End Year Condition Flow tab to view that chart.

$P:\RoadSoft\Documentation\Word Documents\SEYCFTab.png$
